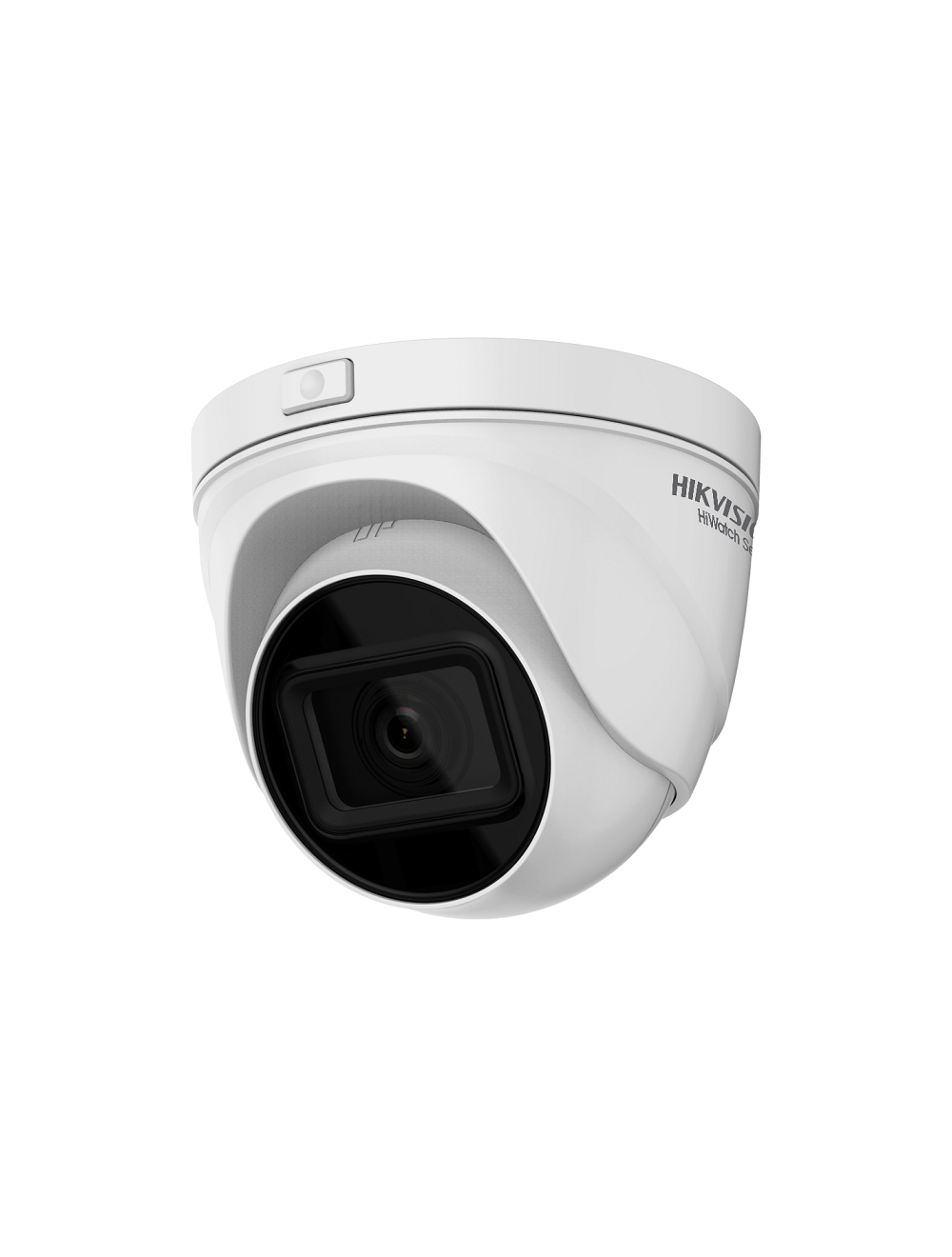

HWI-T621H-Z |
Camera |
Image sensor |
1/2.7" progressive scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0.02Lux @ (F1.6, AGC ON) |
Day&Night |
IR cut filter |
DNR (Digital Noise Reduction) |
3D DNR |
WDR (Wide Dynamic Range) |
Digital WDR |
Angle adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
Lens |
Focal length |
2.8 to 12 mm |
Aperture |
F1.6 |
Focus |
Auto |
Angle of View |
Horizontal Field of View: 108.5° to 33.2°, vertical FoV 57.5° to 18.8°, diagonal FoV 130° to 38° |
Lens mount |
Ø14 |
IR
|
IR Range |
Up to 20m |
Wavelength |
850nm |
Compression standard |
Video compression |
Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
H.264 type |
Baseline Profile/Main Profile/High Profile |
H.264+ |
Main stream supports |
H.264 type |
Main Profile |
H.265+ |
Main stream supports |
Video Bit Rate |
32 Kbps to 8 Mbps |
Image |
Max. Resolution |
2 MP (1920 x 1080) |
Main Stream Max. Frame Rate |
50Hz: 25fps (1920 × 1080, 1280 x 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 x 960, 1280 × 720) |
Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Region of interest |
1 fixed region for main stream |
Image Enhancement |
BLC, 3D DNR |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day.Night switch |
Day/Night/Auto/Schedule |
Network |
Network Storage |
Support micro SD/SDHC/SDXC card (128G), local storage and ANR |
Alarm Trigger |
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
General Function |
One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
API |
ONVIF, ISAPI |
Simultaneous Live View |
Up to 6 channels |
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
Client |
iVMS-4200, Hik-Connect |
Web browser |
IE, Chrome, Firefox |
Interface |
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
Reset button |
Yes |
On-board storage |
Built-in micro SD/SDHC/SDXC card slot, up to 128 GB |
General |
Operating conditions |
-30 °C to 60 °C, humidity: 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Power Consumption |
12 VDC, 0.9 A, Max: 10.5 W PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12 W |
Ingress Protection |
IP67 |
Material |
Body: metal, bottom base: plastic |
Dimensions |
Camera: Ø 129.4 mm × 116.4 mm |
Weight |
Approx. 560 g |
