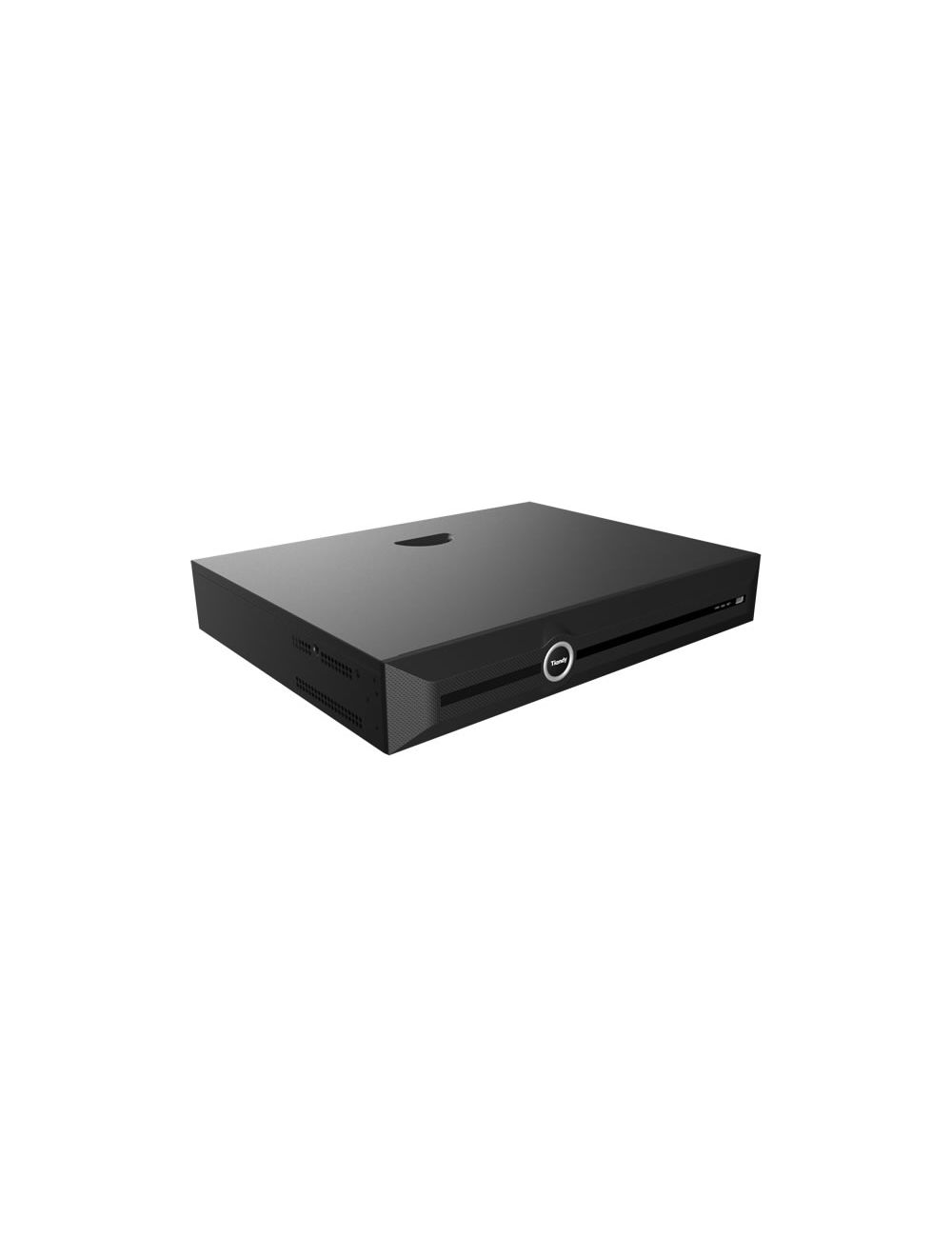

Tiandy TC-R3440 Spec:I/B/N/H/C/V4.0, H.265 4HDD 40ch NVR

16MP 40-channel NVR, Pro series
SKU
TC-R3440_IBNHCV40

TC-R3440 Spec:I/B/N/H/C/V4.0, H.265 4HDD 40ch NVR

Key features

HD Input

  • S+265/H.265/S+264/H.264 video formats
  • Connectable to the third-party network cameras
  • Supports live view, storage, and playback of the connected camera at up to 6MP resolution

HD Output

  • HDMI and VGA independant outputs
  • HDMI video output at up to 4K resolution

HD Storage

  • 4x SATA interface, up to 10TB for each HDD
  • S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

  • 2x RJ45 self-adaptive 10/100 Mbps network interface

Various applications

  • Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
  • Connectable to smart IP cameras from Tiandy and the recording, playing back and backing up of VCA alarms can be realized
  • VCA detection alarm is supported
  • Support cloud upgrade

Dimension: 440 (L) x 347 (W) x 75 (H) mm

Productline: Pro

Meer informatie
SKU TC-R3440_IBNHCV40
Merk Tiandy
EANcode 6971849729534
Model: TC-R3440 Spec:I/B/N/H/C/V4.0
Video & Audio
Access channel 40
Incoming bandwidth 400Mbps
Outgoing bandwidth 400Mbps
Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/QCIF
Preview decoding capability 16MP*2, 12MP*3, 8MP*4, 6MP*4, 5MP*6, 4MP*8, 3MP*9, 1080P*16, 720P*32, 4CIF*40
Playback decoding capability 16MP*2, 12MP*3, 8MP*4, 6MP*4, 5MP*6, 4MP*8, 3MP*9, 1080P*16, 720P*16
Video output Independent HDMI and VGA outputs
HDMI output HDMI: 800*600 (60Hz), 1024*768 (60Hz), 1280*720 (50Hz/60Hz), 1280*800 (60Hz), 1366*768 (60Hz), 1440*900(60Hz), 1920*1080 (50Hz/60Hz), 2560*1440 (30Hz/60Hz), 2560x1600 (60Hz), 3840*2160 (30Hz/60Hz)
VGA output VGA: 800*600 (60Hz), 1024*768 (60Hz), 1280*720 (50Hz/60Hz), 1280*800 (60Hz), 1366*768 (60Hz), 1440*900 (60Hz), 1920*1080 (50Hz/60Hz)
Multi-screen display 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
Third party camera access ONVIF; RTSP
Audio input 1-ch, 3.5mm
Audio output 1-ch, RCA (Linear, 1KΩ)
Two-way audio 1-ch, 3.5mm, using the audio input
Liveview display Independent Output:
VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
Compression
Video S+265/H.265/S+264/H.264
Audio G.711A/G.711U/AAC/ADPCM_DIV4
Stream type Video; Video&Audio
Network
Network Protocol ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP; SRTP; SSH; SSL; TLSv1.2,TLSv1.3; TCP/IP; UDP; Unicast; UPnP
Mobile phone access Android, iOS, P2P_A
System compatibility ONVIF (profile T/S/G); CGI; SDK
Web Firefox52+, Edge89+, Safari11+, Chrome57+, IE10+
Record Playback
Multi channel playback 16
Record mode Manual recording; alarm recording; Schedule recording
Storage Local HDD/USB storage device
Backup USB storage device
Playback function Play/Pause/Stop/Slow/Speed/Backward 30s/Forward 30s/Full screen/Backup (video editing)/Step/Digital zoom
Alarm
General alarm Motion; Mask alarm; Alarm input (IPC); Video loss; Alarm input (NVR); Manual alarm
Alert alarm IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; POE overloaded; IPC voltage abnormal; RTC failure
Intelligent Analytics
VCA detection by camera Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Lens Diagnose; Scene Switch Diagnose; Signal Abnormal Detection; Signal Loss Detection; Plate License Recognition; On Duty Detection; Crowd Detection; Parking Guard; Safety Helmet Detection; Electric Vehicle Testing; People Counting; Link To Tracking; Fireworks detection; Environmental temperature measurement; Face Detection; Human body temperature measurement; Advanced intelligence
VCA search Heatmap; Early-warning search; Behavior Search; Plate License search; Search safety helmet; Thermographic retrieval; Duty search; Electric vehicle retrieval; Facial search
Face Detection by Camera
Performance N/A
Face attributes Gender; age; glasses; mouth mask; body temp
Face picture library Up to 300 faces; Up to 100000 base images
Face picture comparison Cooperate with facial recognition machine
External Port
HDD 4 SATA ports, up to 10TB for a single HDD. Max HDD capacity varies with environment temperature
Disk group 4 disk groups
RAID JBOD, RAID0, RAID1, RAID5, RAID6, RAID10
eSATA N/A
USB 1x USB 2.0; 1x USB 3.0
HDMI 1x HDMI (supports up to 4K resolution output)
VGA 1x VGA
RJ-45 2x RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA 4 SATA interface
RS232 N/A
RS485 N/A
Alarm I/O N/A
PoE
PoE interface N/A
PoE gross power N/A
Power per PoE port N/A
Max current per PoE port N/A
General Parameter
UI language Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkisch/ Russian/ Thai/  French/ Polish/ Dutch/ Hebrew/ Arabic/ Vietnamese/ German/ Ukranian/ Portuguese/ Albanian
Power supply DC12V 5A
Power consumption <15W (HDD not included, idling)
Operating temperature -10°C~55°C
Operating humidity 10%~90% RH
Storage temperature -10°C~55°C
Storage humidity 10%~90% RH
Dimensions 440 (L) x 347 (W) x 75 (H) mm
Package dimensions 540 (L) x 455 (W) x 175 (H) mm
Gross weight 5.05 kg
Net weight 3.3 kg
Package kit NVR, Screw pack, Mouse, Power adapter, Europan standard power cord, 2Ear plate, 4SATA hard disk data cable, 2SATA power cord
