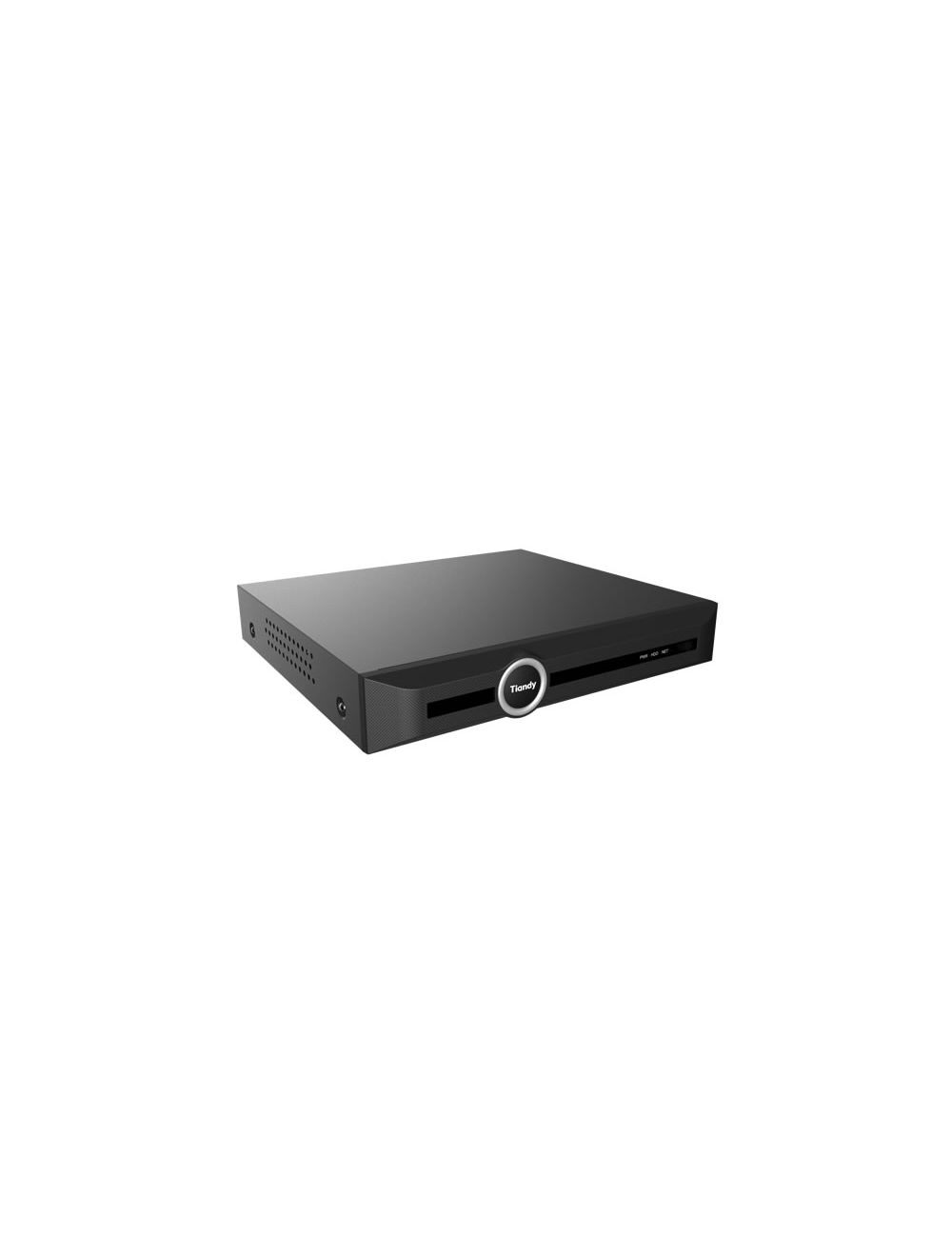

Tiandy TC-R3120 Spec:I/B/K/V3.1, H.265 1HDD 20ch NVR
20-channel 8MP NVR, Lite series
SKU
TC-R3120_IBKV31
Bijpassende producten
TC-R3120 Spec:I/B/K/V3.1, H.265 1HDD 20ch NVR
Key features
HD Input
- S+265/H.265/S+264/H.264 video formats
- Connectable to the third-party network cameras
- Supports live view, storage and playback of the connected camera at up to 6MP resolution
HD Output
- 1x HDMI and 1x VGA simultaneous outputs
- HDMI video output at up to 4K resolution
HD Storage
- 1x SATA interface, up to 10TB capacity HDD
- S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 1x RJ45 self-adaptive 10/100 Mbps network interface
Various applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
- Connectable to smart IP cameras from Tiandy and the recording, playing back and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Support cloud upgrade
Dimension: 255 (L) x 231 (W) x 45 (H) mm
Productline: Lite
| SKU | TC-R3120_IBKV31 |
|---|---|
| Merk | Tiandy |
| EANcode | 6971849726922 |
| Model: TC-R3120 Spec:I/B/K/V3.1 | |
| Video & Audio | |
| Access channel | 20 |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 80Mbps |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/QCIF |
| Preview decoding capability | 8MP*2, 6MP*2, 5MP*3, 4MP*4, 3MP*5, 1080P*8, 720P*16, 4CIF*20 |
| Playback decoding capability | 8MP*2, 6MP*2, 5MP*3, 4MP*4, 3MP*5, 1080P*8, 720P*16 |
| Video output | Simultaneous HDMI and VGA outputs |
| HDMI output | HDMI: 1024*768 (60Hz),(720P) 1280*720 (50Hz/60Hz), 1280*800(60Hz), 1440*900(60Hz), (1080P)1920*1080 (50Hz/60Hz), (2K) 2560*1440 (30Hz), (4K) 3840*2160 (30Hz) |
| VGA output | VGA:1024*768 (60Hz), (720P) 1280*720 (50Hz/60Hz), 1280*800 (60Hz), 1440*900 (60Hz), (1080P) 1920*1080 (50Hz/60Hz) |
| Multi-screen display | 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B |
| Third party camera access | ONVIF; RTSP |
| Audio input | 1-ch, 3.5mm |
| Audio output | 1-ch, RCA (Linear, 1KΩ) |
| Two-way audio | 1-ch, 3.5mm, using the audio input |
| Liveview display | Simultaneous Output: VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B |
| Compression | |
| Video | S+265/H.265/S+264/H.264 |
| Audio | G.711A/G.711U/AAC/ADPCM_DIV4 |
| Stream type | Video; Video&Audio |
| Network | |
| Network Protocol | 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP; SRTP; SSH; SSL; TLSv1.2,TLSv1.3; TCP/IP; UDP; Unicast; UPnP |
| Mobile phone access | Android, iOS, P2P_A |
| System compatibility | ONVIF (profile T/S/G); CGI; SDK |
| Web | Firefox52+, Edge89+, Safari11+, Chrome57+, IE10+ |
| Record Playback | |
| Multi channel playback | 16 |
| Record mode | Manual recording; alarm recording; Schedule recording |
| Storage | Local HDD/USB storage device |
| Backup | USB storage device |
| Playback function | Play/Pause/Stop/Slow/Speed/Backward 30s/Forward 30s/Full screen/Backup (video editing)/Step/Digital zoom |
| Alarm | |
| General alarm | Motion; Mask alarm; Alarm input (IPC); Video loss; Alarm input (NVR); Manual alarm |
| Alert alarm | IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; POE overloaded; IPC voltage abnormal; RTC failure |
| Intelligent Analytics | |
| VCA detection by camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Lens Diagnose; Scene Switch Diagnose; Signal Abnormal Detection; Signal Loss Detection; On Duty Detection; Crowd Detection; Safety Helmet Detection; People Counting; Link To Tracking; Face Detection |
| VCA search | Early-warning search; Behavior Search |
| Face Detection by Camera | |
| Performance | N/A |
| Face attributes | N/A |
| Face picture library | N/A |
| Face picture comparison | N/A |
| External Port | |
| HDD | 1 SATA port, up to 10TB for a single HDD. Max HDD capacity varies with environment temperature |
| Disk group | 1 disk group |
| RAID | N/A |
| eSATA | N/A |
| USB | 2x USB 2.0 |
| HDMI | 1x HDMI (supports up to 4K resolution output) |
| VGA | 1x VGA |
| RJ-45 | 1x RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| SATA | 1 SATA interface |
| RS232 | N/A |
| RS485 | N/A |
| Alarm I/O | 4 channel in; 1 channel out |
| PoE | |
| PoE interface | N/A |
| PoE gross power | N/A |
| Power per PoE port | N/A |
| Max current per PoE port | N/A |
| General Parameter | |
| UI language | Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkisch/ Russian/ Thai/ French/ Polish/ Dutch/ Hebrew/ Arabic/ Vietnamese/ German/ Ukranian/ Portuguese/ Albanian |
| Power supply | DC12V 3.3A |
| Power consumption | <10W (without HDD&PoE) |
| Operating temperature | -10°C~55°C |
| Operating humidity | 10%~90% RH |
| Storage temperature | -10°C~55°C |
| Storage humidity | 10%~90% RH |
| Dimensions | 255 (L) x 231 (W) x 45 (H) mm |
| Package dimensions | 385 (L) x 280 (W) x 80 (H) mm |
| Gross weight | 1.6 kg |
| Net weight | 0.9 kg |
| Package kit | NVR, Screw pack, Mouse, Power adapter, Europan standard power cord |
