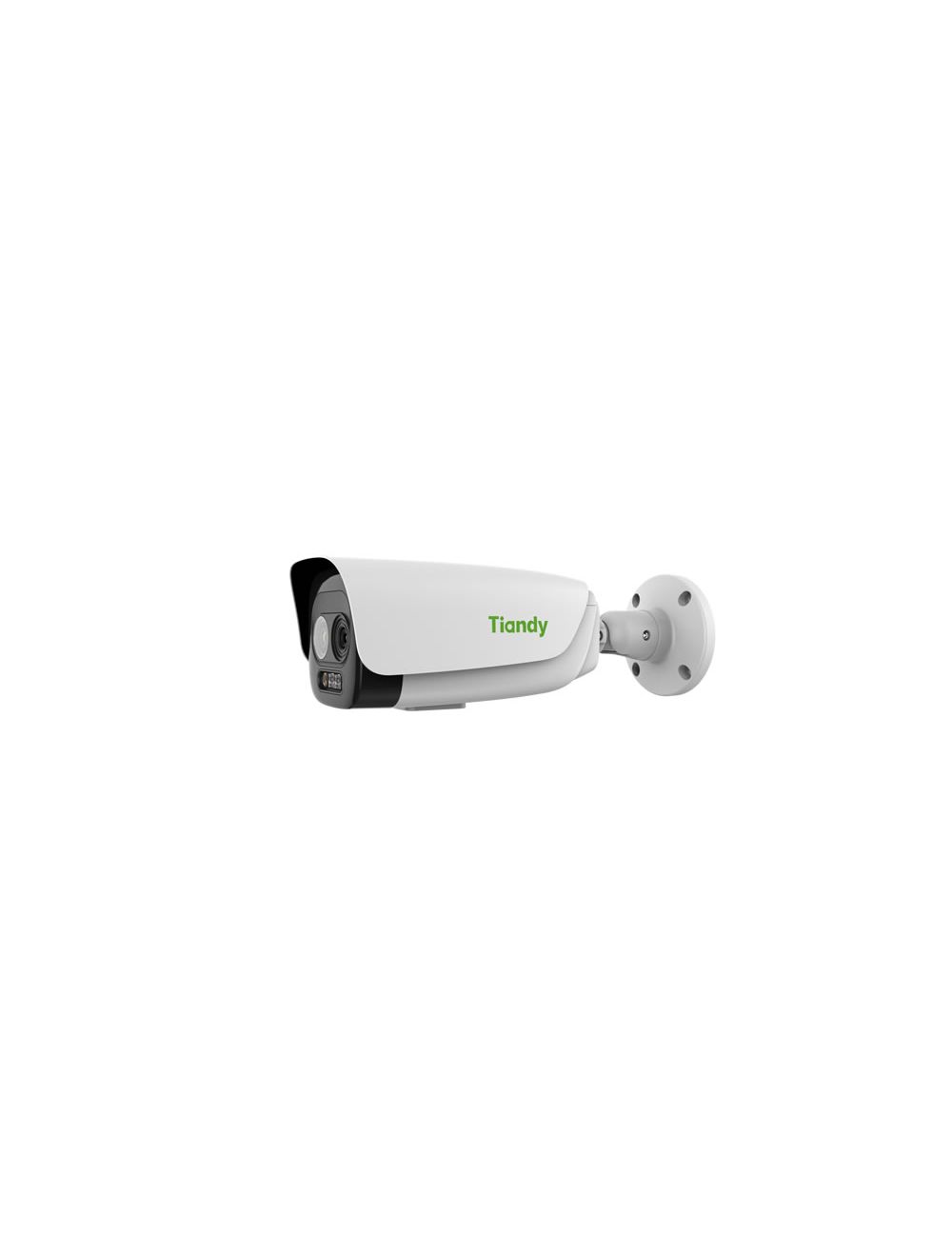

Tiandy TC-C35LQ Spec:I5W/E/Y/T/4mm/V4.2, 5MP Thermography bullet camera
5MP PoE outdoor security camera, temperature exception alarm for fire prevention
SKU
TC-C35LQ_I5WEYT4V42
Bijpassende producten
Selecteer items om ze aan het mandje toe te voegen of
Tiandy TC-C35JS Spec:I5W/E/Y/T/4mm/V4.2
Key features
- Metal Housing
- Up to optical: 2880x1620 @ 30fps; thermal: 1280x720 @ 25fps
- S+265/H.265/H.264/M-JPEG
- Min. illumination Color: 0.002Lux@F1.6
- IR Range up to: 50m
- Built-in mic & speaker
- Support MicroSD/microSFHC/microSDXC card up to 512GB
- Support smart surveillance
- Support human and verhicle classification
- Operating conditions -40°~65°, 0~95% RH
- DC12V ± 25%, max 7W, PoE IEEE 802.3af, max 8W
- IP67
- Dimension: 327 (L) x 114 (W) x 105 (H) mm
- Productline: Pro
| SKU | TC-C35LQ_I5WEYT4V42 |
|---|---|
| Merk | Tiandy |
| EANcode | 6971849729770 |
| Model: TC-C35LQ Spec:I5W/E/Y/T/4mm/V4.2 | |
| Thermal | |
| Image sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 256x192 |
| Pixel pitch | 12μm |
| Spectral range | 8μm to 14μm |
| Focal length | 3.2mm |
| NETD | ≤55mK(@25°C, F#=1.1) |
| Aperture | F1.1 |
| Field of view | Horizontal FOV 56°; Vertical FOV 42° |
| Camera | |
| Image sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter time | 1s-1/100000s |
| Day & Night | Dual IR-cut filter with auto switch |
| WDR | TWDR |
| Lens | |
| Lens type | Fixed |
| Focal length | 4mm |
| Lens mount | M12 |
| Aperture range | Optical F1.6 |
| Field of view | 88.7°(H); 46.8°(V); 102°(D) |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | 50m |
| Wavelength | 850nm |
| White LEDs | 2, used for warming |
| Compression standard | |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video bit rate | 32k-16Mbps |
| Audio compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio sampling rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. resolution | 2880x1620 @ 30fps |
| Main stream | Thermal: 25 fps (1280×720, 704×576, 640×480, 352x288) Optical: PAL: 25fps (2880x1620, 2688x1520, 2560x1440, 2304x1296) NTSC: 30fps (2880x1620, 2688x1520, 2560x1440, 2304x1296) |
| Sub stream | Thermal: 25fps (352x288) Optical: 25fps (704×576) 30fps (704×480) |
| Third stream | N/A |
| BLC | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| HLC | BLC/3D DNR/HLC |
| AGC | √ |
| 3D DNR | √ |
| White balance | √ |
| ROI | 8 regions |
| Corridor mode | N/A |
| EIS | N/A |
| Picture overlay | √ |
| Privacy mask | 4 regions |
| Defog | Electronic |
| Thermal function | |
| Thermal analytics | Tripwire; Perimeter; Double tripwire; Human & Vehicle classificaton; High temperature display; smoking detection |
| Temperature range | -15.0°~150.0°, 50.0°~550.0°, Auto |
| Temperature accuracy | Max (±2°C, ±2%) |
| Temperature measurement | 3 temperature measurement rule types (points, areas, line free combination, max 12 species) |
| Feature | |
| Alarm trigger | Motion Detection; Mask Alarm; IP Address Conflict; Disk full; Disk R/W error |
| Linkage method | Send email; trigger sound; trigger recording; trigger capture; trigger warmlight; notify surveillance center |
| Video analytics | Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter |
| Rules of behavior analyse in 1 scene | 8 |
| Early Warning (EW) | √ |
| Network | |
| ANR | √ |
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; EasyDDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; SSH; SRTP; RTSP |
| System compatibility | ONVIF (Profile S/T/G), SDK, CGI, MILSTONE |
| Remote connection | 3 |
| Client | Easy7 Smart Client |
| Mobile client | EasyLive Plus |
| Web | IE/Firefox/Edge/Safari/Chrome |
| Interface | |
| Communication interface | 1 RJ45 10M/100M self adaptive ethernet port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Built-in Mic | √ |
| Built-in speaker | √ |
| Reset button | √ |
| On-board storage | √, up to 512GB |
| Additional interfaces | RS485 |
| General | |
| Web client language | 18 languages English / Spanish / Korean / Italian / Turkish / Russian / Simple Chines / Thai / French / Polish / Dutch / Hebrew / Arabic / Vietnamese / German / Ukrainian / Portuguese |
| Operating temperature | -35°C~65°C |
| Operating humidity | 0-95% (non-condensing) |
| Storage temperature | -35°C~65°C |
| Storage humidity | 0-95% (non-condensing) |
| Power supply | DC12V ± 25%; PoE: 802.3af |
| Power consumption | max 9W (PoE) |
| Protection | IP67 |
| Dimensions | 327 (L) x 114 (W) x 105 (H) mm |
| Package dimensions | 360 (L) x 150 (W) x 170 (H) mm |
| Gross weight | 1.8 kg |
| Net weight | 1.5 kg |
