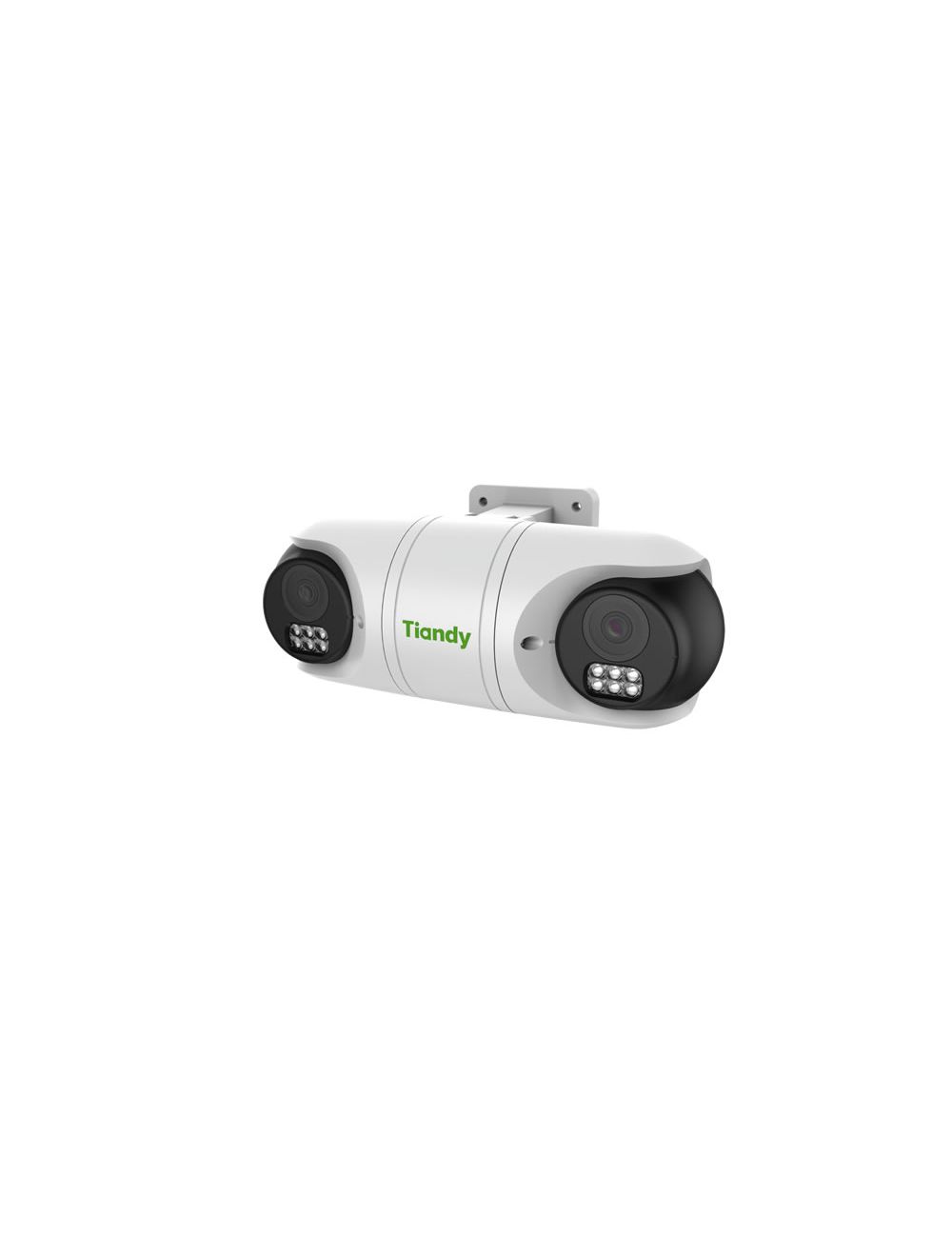

Tiandy TC-C32RN Spec:I5/E/Y/QX/2.8mm/V4.2, Dual 2MP PoE Fixed IR bullet camera
2MP Dual-lens PoE outdoor security camera
SKU
TC-C32RN_I5EYQX28V42
Tiandy TC-C32RN Spec:I5/E/Y/QX/2.8mm/V4.2
Key features
- Dual lens, dual sensor, one IP two channel
- Plastic Housing
- Resolution up to 1920x1080@30fps
- S+265/H.265/H.264
- Min. illumination Color: 0.02Lux@F1.6
- Smart IR, IR Range: 50m
- Built-in Mic
- Operating Conditions -30°~60°, 0~95% RH
- DC12V, Power over Ethernet (802.3af)
- IP67
- Field of view: 93.9° horizontal, 51.2° vertical, 107° diagonal
- Dimension: 260 (L) x 133 (W) x 115 (H) mm
- Productline: Spark / S+265
| SKU | TC-C32RN_I5EYQX28V42 |
|---|---|
| Merk | Tiandy |
| EANcode | 6971849729794 |
| Model: TC-C32RN Spec:I5/E/Y/QX/2.8mm/V4.2 | |
| Camera | |
| Image sensor | 1/3"CMOS |
| Min. Illumination | Color: 0.02 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter time | 1s-1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N | >36dB |
| Angle adjustment | 0-350°(P); 0-90°(T); 0-360°(R) |
| Lens | |
| Lens type | Fixed |
| Focal length | 2.8mm |
| Lens mount | M12 |
| Aperture range | F1.6 |
| Aperture type | Fixed |
| Field of view | 93.9° (H); 51.2° (V); 107° (D) |
| DORI distance | Detect: 42.26m Observe: 16.77m Recognize: 8.45m Identify: 4.23m |
| Illuminator | |
| IR LEDs | 6 |
| IR Distance | 50m |
| Wavelength | 850nm |
| White LEDs | N/A |
| White light distance | N/A |
| Compression standard | |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video bit rate | 32k-4Mbps |
| Audio compression | G.711A/G.711U |
| Audio sampling rate | 8kHz/16kHz |
| Image | |
| Max. resolution | 1920x1080 @ 30fps |
| Main stream | PAL: 25fps (1920×1080, 1280×720, 640x480, 704x576) NTSC: 30fps (1920×1080, 1280×720, 640x480, 704x480) |
| Sub stream | PAL: 25fps (704×576, 704×288, 352×288, 640×360) NTSC: 30fps (704×480, 704×240, 352×240, 640×360) |
| Third stream | N/A |
| BLC | √ |
| HLC | √ |
| AGC | √ |
| 3D DNR | √ |
| White balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
| ROI | N/A |
| Corridor mode | N/A |
| EIS | N/A |
| OSD | 1 region, 16*16/32*32/48*48 |
| Privacy mask | 4 regions |
| Defog | √ |
| Feature | |
| Alarm trigger | Motion detection, IP Address conflict |
| Linkage method | Trigger capture |
| Video analytics | N/A |
| Rules of behavior analyse in 1 scene | N/A |
| Early Warning (EW) | N/A |
| AutoTracking | N/A |
| Face Mode | N/A |
| Face detection performance | N/A |
| Network | |
| ANR | N/A |
| Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, TLS v1.2, IPv4, Telnet, Unicast |
| System compatibility | P2P (mutually exclusive with Profile G), ONVIF (Profile S/T), CGI, MIL STONE |
| Remote connection | ≤2 |
| Client | Easy7 Smart Client |
| Mobile client | EasyLive Plus |
| Web | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Interface | |
| Communication interface | 1 RJ45 10M/100M self adaptive ethernet port |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | √ |
| Built-in speaker | N/A |
| Reset button | N/A |
| On-board storage | N/A |
| Additional interfaces | N/A |
| General | |
| Web client language | 18 languages (Simple Chinese /Traditional Chinese /English /Spanish /Korean /Italian /Turkisch /Russian /Thai /French /Polish /Dutch /Hebrew /Arabic /Vietnamese /German /Ukrainian /Portuguese) |
| Operating temperature | -30°C~60°C |
| Operating humidity | 0-95% |
| Storage temperature | -30°C~60°C |
| Storage humidity | 0-95% (non-condensing) |
| Power supply | DC12V±25%, max 7.5W; PoE: IEEE 802.3af, max. 8.5W |
| Protection | Surge protection 2000V; Lightning proof 6000V; IP67 |
| Dimensions | 260 (L) x 133 (W) x 115 (H) mm |
| Package dimensions | 315 (L) x 145 (W) x 140 (H) mm |
| Gross weight | 0.87 kg |
| Net weight | 0.67 kg |
