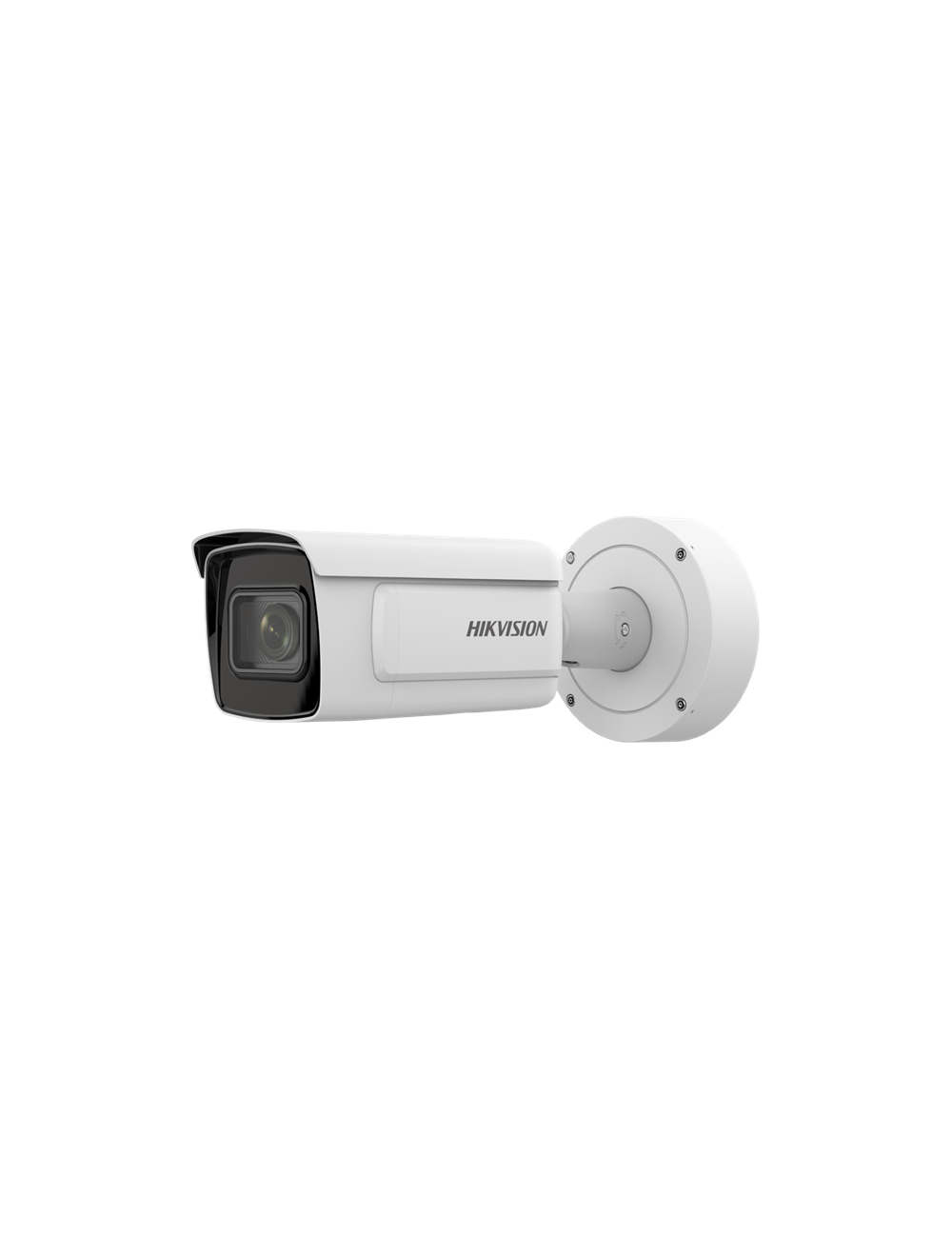

Hikvision iDS-2CD7A46G0/P-IZHSY (2.8~12MM), 4MP bullet camera with License Plate Recognition
Informeer naar levertijd / Please inquire about delivery time
SKU
iDS-2CD7A46G0/P-IZHSY(2.8
Bijpassende producten
Selecteer items om ze aan het mandje toe te voegen of
Informeer naar levertijd / Please inquire about delivery time
iDS-2CD7A46G0/P-IZHSY
4 MP DeepinView ANPR Moto Varifocal Bullet Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- License Plate Recognition
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
| SKU | iDS-2CD7A46G0/P-IZHSY(2.8 |
|---|---|
| Merk | Hikvision |
| EANcode | 6941264056881 |
| iDS-2CD7A46G0/P-IZHSY | |
| Camera | |
| Image sensor | 1/1.8" CMOS |
| Max Resolution | 2688x1520 |
| Min. Illumination | Color: 0.0005 Lux @(F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, ACG ON), 0 Lux with IR |
| Shutter time | 1s to 1/100,000s |
| Day & Night | IR Cut filter Blue glass module to reduce ghost phenomenon |
| Lens | |
| Focal length & FOVl | 2.8 to 12mm, horizontal FOV 114,5 to 41.8°, vertical FOV 59.3 to 23.6°, diagonal FOV 141.1 to 48° |
| Focus | Auto, Semi-auto, Manual |
| Aperture | 2.8 to 12mm: F1.2 to F2.5 |
| Iris type | P-iris |
| DORI | |
| DORI 2.8 to 12mm | Wide: D(etect): 60 m, O(bserve): 23.8 m, R(ecognize): 12 m, I(dentify): 6 m Tele: D(etect): 149 m, O(bserve): 59.1 m, R(ecognize): 29.8 m, I(dentify): 14.9 m |
| Illuminator |
|
| Supplement light type | IR |
| Range | 2.8 to 12mm: 50m |
| Smart supplement light | Yes |
| IR Wavelength | 850nm |
| Video | |
| Main stream | 50Hz: 25fps (2688x1520, 2560x1440, 1920x1080, 1280x720); 50fps (2560x1440, 1920x1080, 1280x720) 60HZ: 30fps (2688x1520, 2560x1440, 1920x1080, 1280x720); 60fps (2560x1440, 1920x1080, 1280x720) |
| Sub stream | 50Hz: 25fps (704x576, 640x480) 60Hz: 30fps (704x480, 640x480) |
| Third stream | 50 Hz: 25fps (1920 × 1080, 1280 × 720, 704x576, 640 × 480) 60 Hz: 30fps (1920 × 1080, 1280 × 720, 704x480, 640 × 480) |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 type | Baseline Profile/Main Profile/High Profile |
| H.265 type | Main profile |
| Bit rate control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of interest (ROI) | Support 4 fixed regions for main stream |
| Target Cropping | Yes |
| e-PTZ | Support Patrol and Auto Tracking settings |
| Audio | |
| Audio Type | Mono |
| Audio compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC |
| Audio Sampling rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise filtering | √ |
| Image | |
| WDR | 140 dB |
| SNR | ≥ 52 dB |
| Image parameters switch | Yes |
| Image Enhancement | BLC, HLC, defog, 3D DNR, Distortion correction |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, shite balance, adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled, alarm trigger, video trigger |
| Privacy mask | 8 programmable polygon privacy masks |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live view | Up to 15 channels |
| API | Open network video interface, ISAPI, SDK, ISUP 5.0 |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Network storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200, Hik-Connect |
| Web browser | Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Event | |
| Basic event | Motion detection, video tampering alarm, exception, video quality diagnosis, vibration detection |
| Smart Event |
Audio exception detection, defocus detection, scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| Interface | |
| Video output | 1 Vp-p Composite output |
| Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
| On-Board storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicrosSDXC, up to 1TB |
| Audio | 1 input (line in), 1 output (line out), 3.5mm connector |
| Alarm | 2 inputs, 2 outputs (max 24 VDC, 1A) |
| RS-485 | 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset key | Yes |
| Power output | 12 VDC, max 100 mA |
| Wiegand | 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit) |
| General | |
| Storage conditions | -30 °C to 60 °C, humidity 95% or less (non-condensing) |
| Startup and operating conditions | -40 °C to 60 °C, humidity 95% or less (non-condensing) |
| Power | 12 VDC ± 20%, 1.196 A, max. 14.28 W, three-core terminal block PoE 802.3at, Type 2, class 4, 42.5V to 57V, 0.396 A to 0.295 A, max 16.8 W |
| Ingress Protection | IP67 |
| Material | Aluminum alloy body |
| Dimensions | ∅140 mm × 351 mm |
| Weight | approx: 1950 g |
| General function | Anti-banding, heartbeat, mirror, flash log, password reset via e-mail, pixel counter |
| Approval | |
| Environment | CE-RoHS, WEEE, Reach |
