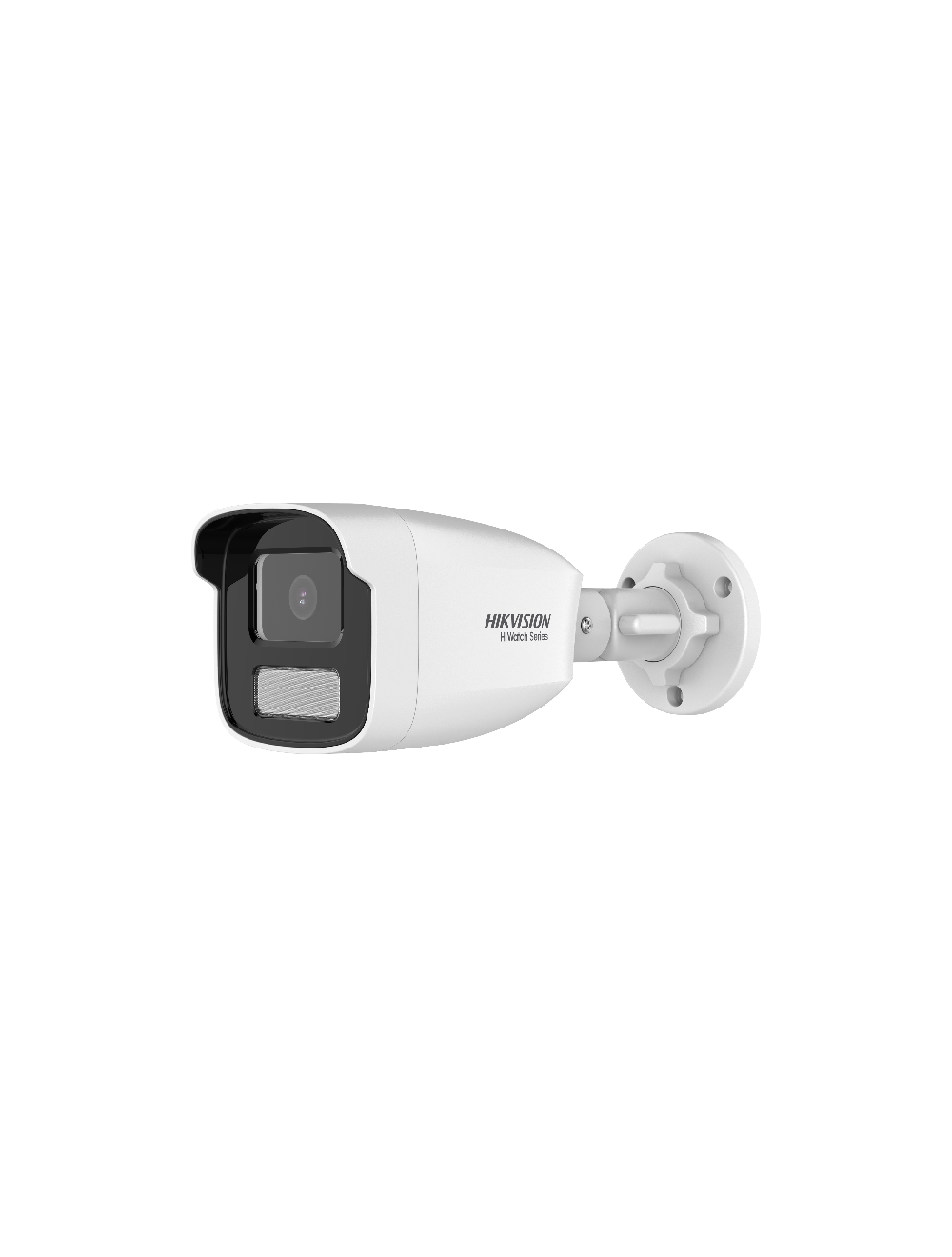

Hikvision HWI-B449H 4.0mm 4MP HiWatch Network Bullet camera

HiWatch Series: 4 Megapixel ColorVu Fixed Bullet network camera

SKU

HWI-B449H(4MM)(C)

Details

1/3" progressive scan CMOS
2560 × 1440
4.0 mm lens
Aperture F1.0
Horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
Motion detection, video tampering alarm, exception
Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Video compression: Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
Image settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
WDR (Wide Dynamic Range) 120dB
Image enhancement, BLC, 3D DNR (Digital Noise Reduction)
Day/Night switch: Day, night, auto, schedule
Smart supplement light, white light range up to 50 m
IP67
Client iVMC-4200, Hik-Connect
Power 12 VDC ±25%, 0.4A
Front cover: metal, body: plastic, bracket: metal
Dimension: 83.7 × 80.7 x 206.6 mm

Lees meer over / read more about Hikvision HiWatch series

Meer informatie

Meer informatie
SKU	HWI-B449H(4MM)(C)
Merk	Hikvision
EANcode	6931847133382

Technische Specificaties

HWI-B449H-4MM (C)
Camera
Image sensor	1/3"CMOS
Max Resolution	2560 x 1440
Min. Illumination	Color: 0.01 Lux @(F1.0, AGC ON) 0 Lux with white light
Shutter time	1/3s to 1/100,000s
Day&Night	24/7 color imaging
Angle adjustment	Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Lens
Aperture	F1.0
Lens mount	M12
FOV	4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
Illuminator
Smart supplement light	Yes
White light range	Up to 50 m
Video
Main stream	50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 8 Mbps
H.264 type	Baseline profile/Main profile/High profile
H.265 type	Main profile
Region of interest (ROI)	1 fixed region for main stream
WDR	120 dB
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Network
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S), ISAPI
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Client	iVMS-4200, Hik-Connect
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic event	Motion detection, video tampering alarm, exception
General
Storage conditions	-30 °C to 60 °C. Humidity 95% or less (non-condensing)
Startup and operating conditions	-30 °C to 60 °C, humidity: 95% or less (non-condensing)
Power	12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.15 A to 0.2 A, max. 6.5 W
Linkage method	Upload to FTP, notify surveillance center, send email, trigger capture
Material	Front cover: metal, body: plastic, bracket: metal
Dimensions	Camera: 83.7 mm × 80.7 mm x 206.6 mm With package: 260 mm × 125 mm × 125 mm
Weight	Camera: approx. 430 g. With package: approx: 648 g
General function	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC	CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
Safety	CE-LVD (EN 62368-1:2014/A11:2017)
Environment	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529-2013)

Download: HikVision/HiWatch camera's
