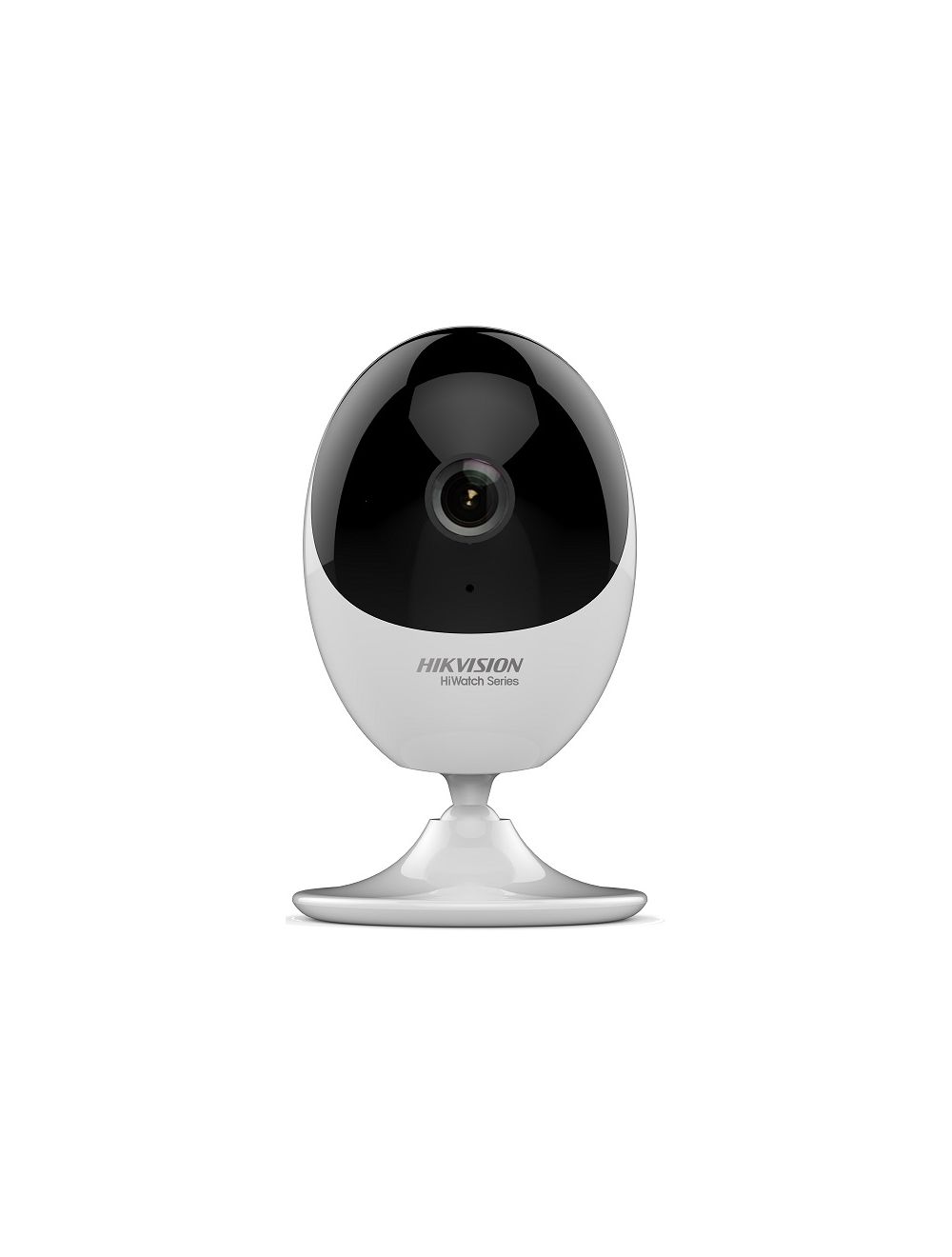

Hikvision HWC-C120-D/W HiWatch 2 MP Network Cube Camera
HiWatch Series: 2.0 Megapixel Network Cube Camera
SKU
HWC-C120-D/W(2.0MM)
- 1/2.7" Progressive Scan CMOS
- 1920 x 1080@30fps
- H.265, H.265+, H.264, H.264+
- IR range: Up to 10 m
- Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
- Built-in Wi-Fi
- Mobile Monitoring via Hik-Connect
SKU | HWC-C120-D/W(2.0MM) |
---|---|
Merk | Hikvision |
EANcode | 6941264032014 |
HWC-C120-D/W | |
Camera | |
Image sensor | 1/2.7" Progressive Scan CMOS |
Min. Illumination | Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR |
Shutter speed | 1/3s to 1/100,000 s |
Slow Shutter | Support |
Iris | F2.2 |
Day&Night | IR cut filter |
Lens | Fixed lens, 2.0mm |
Lens mount | M12 |
DNR (Digital Noise Reduction) | 3D DNR |
WDR (Wide Dynamic Range) | DWDR |
WiFi | |
Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz - 2.4835 GHz |
Channel bandwidth | 20/40MHz Support |
Protocols | 802.11b: DSSS, 802.11g: OFDM, 802.11n(20MHz&40MHz): OFDM |
Security | 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK |
Transfer Rates | 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
Wireless Range | 80 meters (The performance varies based on actual environment) |
Audio |
|
Environment Noise Filter | Support |
Audio Sampling Rate | Max 16 kHz |
Compression standard | |
Video compression | Main stream:H.265+/H.264+/H.265/H.264 Sub stream: H.265/H.264/MJPEG |
H.264 type | Baseline Profile/Main Profile |
Video Bit Rate | 32 Kbps to 8 Mbps |
Audio compression | G.711/G.722.1/G.726/MP2L2/PCM |
Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
Image | |
Max. Resolution | 1920 x 1080 |
Main Stream Max. Frame Rate |
50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720) |
Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 360) 60Hz: 30fps (640 × 360) |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software |
Day/Night Switch | Auto, scheduled, day, night |
Network | |
Network Storage | microSD/SDHC/SDXC card (256 GB) local storage, ANR and NAS (NFS,SMB/CIFS) |
Detection | Motion detection |
Alarm Trigger | Video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour |
General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, flash log |
Standard | ISAPI, SDK |
Interface | |
On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
Audio interface | Built-in microphone & speaker |
Reset | Reset via reset button on camera body and client software |
General | |
Operating conditions | -10 °C to 40 °C, humidity: 95% or less (non-condensing) |
Power Supply | 5 VDC ± 10%, micro USB interface |
Current | Max 1.3A |
Power Consumption | Max: 6.5 W |
IR Range | Up to 10 meters |
Material | Plastic |
Dimensions | Camera: Ø 64 mm × 112 mm With package: 216 mm × 121 mm × 118 mm |
Weight | Camera: approx. 120 g. With package: approx: 390 g |
Of bekijk datasheet HWC-C120-D/W
