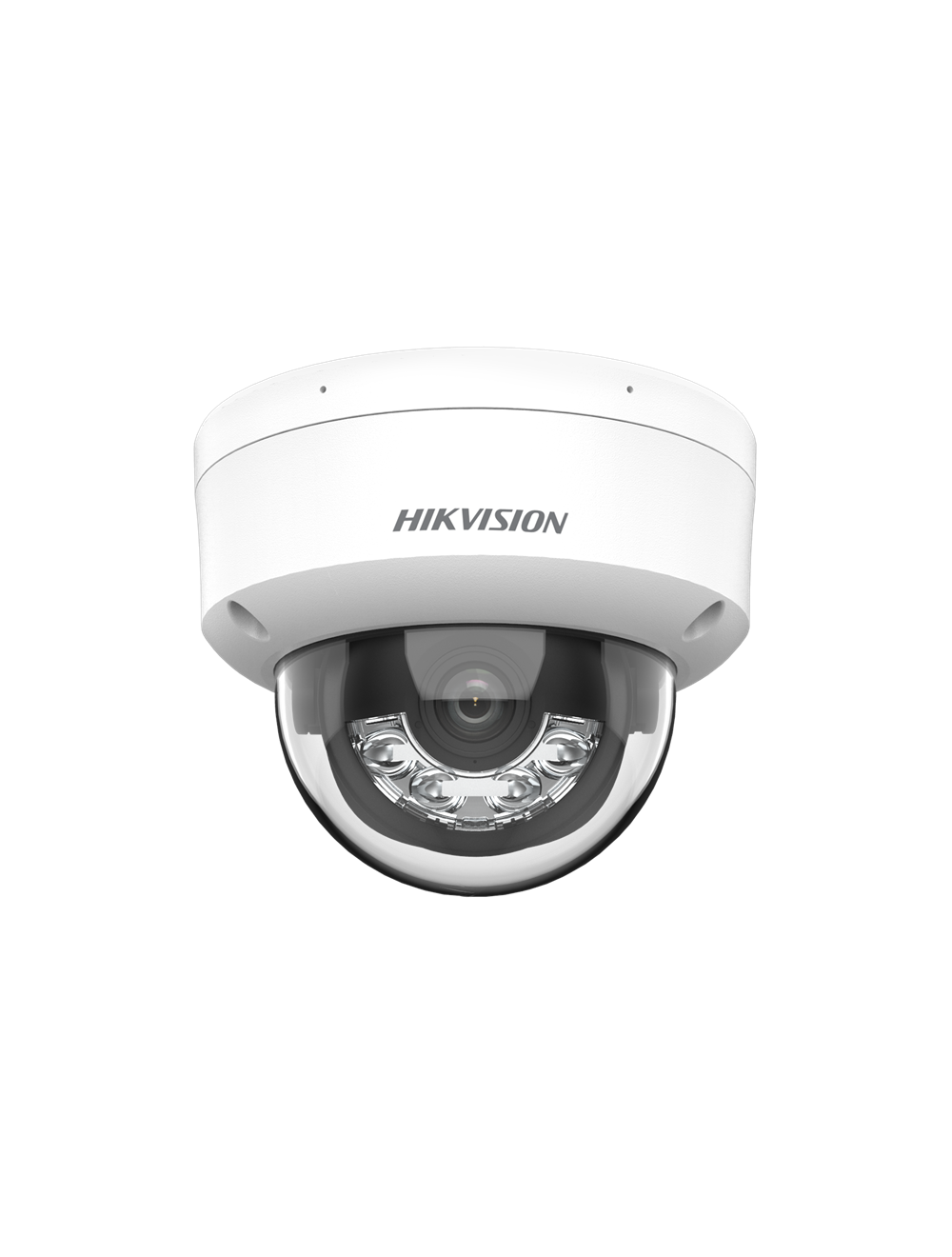

Hikvision DS-2CD2143G2-LIS2U-2.8mm, 4MP AcuSense Smart Hybrid Light fixed dome network camera
4MP 2.8mm outdoor dome PoE camera | IP67 water and dust resistant | IK10 vandal resistant
SKU
DS-2CD2143G2-LIS2U-2.8-W
Bijpassende producten
Selecteer items om ze aan het mandje toe te voegen of
Hikvision DS-2CD2143G2-LIS2U-2.8mm
- High quality imaging with 4 MP resolution
- Acusense: Focus on human and verhicle classification based on deep learning
- Smart Hybrid light: Integrates IR and White lights, 4 supplemental lighting modes
- -2U: Built-in arrayal dual-microphone for real-time high quality audio security
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
| SKU | DS-2CD2143G2-LIS2U-2.8-W |
|---|---|
| Merk | Hikvision |
| DS-2CD2346G2-LIS2U-2.8MM | |
| Camera | |
| Image sensor | 1/3" Progressive Scan CMOS |
| Max Resolution | 2688x1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Day&Night | IR cut filter |
| Shutter time | 1/3s to 1/100,000s |
| Angle adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355° |
| Lens | |
| Lens type | Fixed focal lens |
| Focal length & FOV | 2.8mm: horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122° |
| Lens mount | M12 |
| Aperture | F1.6 |
| Iris type | Fixed |
| Depth of field | 1.4m to ∞ |
| DORI | |
| DORI | 2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator |
|
| Supplement light type | IR, White light |
| Range | Up to 30m |
| Smart supplement light | Yes |
| IR Wavelength | 850nm |
| Video | |
| Main stream | 50Hz: 25fps (2688x1520, 1920x1080, 1280x720) 60Hz: 30fps (2688x1520, 1920x1080, 1280x720) |
| Sub stream | 50Hz: 25fps (1280x720, 640x480, 640x360) 60Hz: 30fps (1280x720, 640x480, 640x360) |
| Third stream | 50Hz: 10fps (1920x1080, 1280x720, 640x480, 640x360) 60Hz: 10fps (1920x1080, 1280x720, 640x480, 640x360) Third stream is supported under certain settings |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Third stream is supported under certain settings |
| H.264 type | Baseline Profile/Main Profile/High Profile |
| H.265 type | Main profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit rate control | CBR/VBR |
| Scalable video coding (SVC) | H.264 and H.265 encoding |
| Target cropping | Yes |
| Region of interest (ROI) | 1 fixed region for main stream and sub stream |
| Audio | |
| Audio compression | -2U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio bit rate | -2U: 64Kbps (G.711ulaw/G.711alaw)/16Kbps (G.722.1)/16Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16-64Kbps (AAC-LC) |
| Audio sampling rate | -2U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment noise filtering | -2U: Yes; |
| Image | |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image parameters switch | Yes |
| Image Settings | Rotate mode |
| Day/Night Switch | Day, night, auto, scheduled |
| Privacy mask | 8 programmable polygon privacy masks |
| Network | |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, HTTPS, DDNS, RTP, RTSP, RTCP, UPnP, IGMP, IPv4, IPv6, UDP, 802.1X, QoS, NTP, SMTP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, FTP |
| API | Open network video interface (Profile G, S), ISAPI, SDK, IDUP |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported; |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web browser | Plug-in required live view: IE11 Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ Local Service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Event | |
| Basic event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, send E-mail, notify surveillance center, trigger recording, trigger capture, -S: trigger alarm output |
| Smart Event | Face detection |
| Deep learning function | |
| Perimeter Protection | Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle) |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in memory card slot, support microSD/,icroSDHC/microSDXC card, up to 512GB |
| Audio | Built-in Microphone: -2U: Arrayed dual-microphone -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -S: 1 input, 1 output (max 12 VDC, 30 mA) |
| Reset key | Yes |
| General | |
| Storage conditions | -30 °C to 60 °C, humidity 95% or less (non-condensing) |
| Startup and operating conditions | -30 °C to 60 °C, humidity 95% or less (non-condensing) |
| Power | 12 VDC ± 25%, 0.6A, max. 7.2W, ∅5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, class 3, max 8.5 W |
| Language | 33 |
| Material | Base: aluminum alloy, cover: aluminum alloy |
| Dimensions | Camera: Ø 121.5 mm × 97.6 mm With package: 150 mm × 150 mm × 141 mm |
| Weight | Camera: approx. 600 g. With package: approx: 830 g |
| General function | Heartbeat, mirror, flash log, pixel counter, password reset via email, anti-banding |
| Approval | |
| Protection | IP67, IK10 |
| Environment | CE-RoHS, WEEE, Reach |
