Micronet SP5584A Mini Dome

Quick Overview

1080p WDR Mini Fixed Dome IP-camera

Availability: Please login to see availability

OR

Additional Information

SKU SP5584A
Brand Micronet

Details

Micronet SP5584A HD WDR mini dome IP camera offers high definition video surveillance with superior image quality and detail in a small form factor. It also delivers HD 1080p (1920 * 1080) resolution with excellent color display and advanced WDR technology by challenging lighting conditions. SP5584A supports dual streaming in HD quality with the first stream recording in 1080p and the second stream for Live View in 720p. These camera's have a broad coverage and maintain clear image quality. Low-light power and PoE possibility guarantee its diversity in most indoor mounting locations.

Specifications:

  • Progressive Scan CMOS Sensor
  • Quad Streams + Region of Interest (ROI)
  • Dual Streams, HD1080p + D1 real-time
  • H.264 and MJPEG compression
  • Wide Dynamic Range (WDR)
  • Movement Detection
  • Privacy Masks
  • Sabotage Detection
  • Smart Picture Quality / 3D Noise Reduction
  • Portrait View Mode (Image rotation by 90°)
  • Network Failure Detection
  • microSD/SDHC Support*
  • PoE (802.3af)
  • ONVIF Support
ModelSP5584A
Video Sensor 1/2.7" Progressive Scan CMOS
Video Lens f=4mm F1.5 fixed
Shutter Speed 1~1/10000 Sec.
Video resolution HD1080p/HD720p/D1/VGA/QVGA/CIF
FOV(16:9 resolution) 78?
Video compression H.264/MJPEG
LAN 10/100M
Protocol IPv4/v6, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Power Source PoE (802.3af) Only
Power consumption 3.8W
Dimensions (mm) Ø110 x 50
Certification CE, FCC, RoHS
Weight 400g

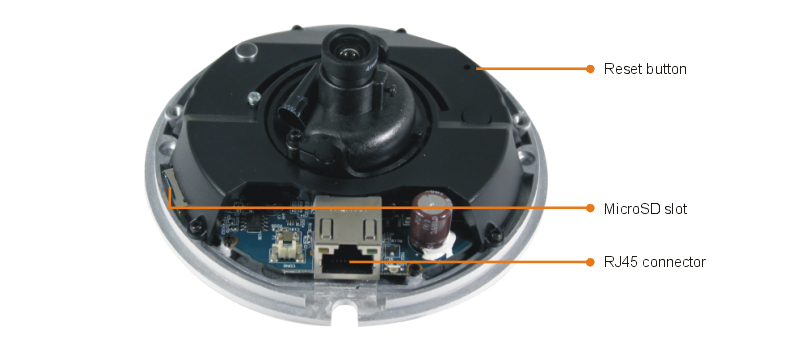

Interface

Interface

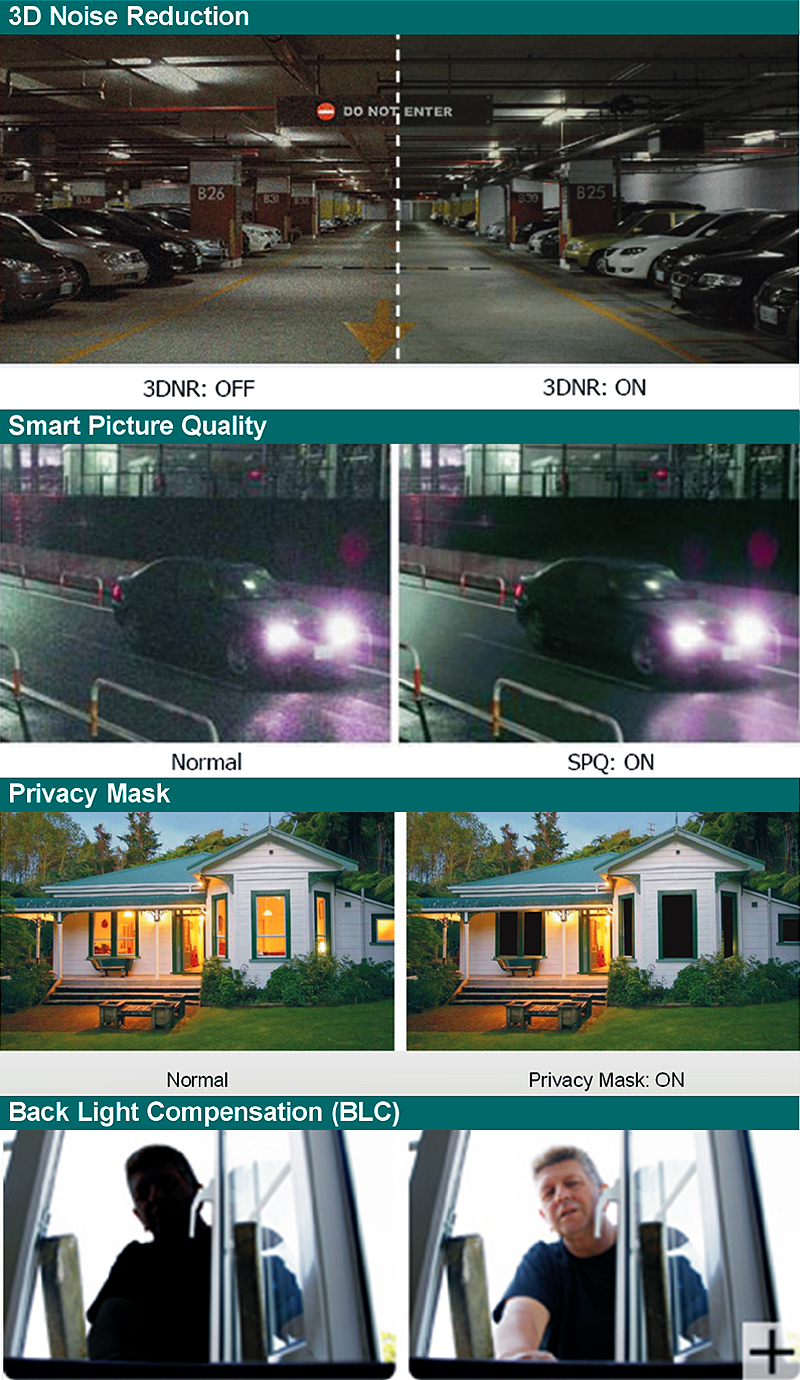

Application

Application
