Micronet SP5582A IP66 Dome

Quick Overview

1080p WDR IP66 Dome

Availability: Please login to see availability

OR

Additional Information

SKU SP5582A
Brand Micronet

Details

Micronet SP5582A HD WDR IR vandalism-proof fixed dome IP camera offers high definition video surveillance with superior image quality and detail. It also delivers HD 1080p (1920 * 1080) resolution with excellent color display and advanced WDR technology with challenging lighting conditions. SP5582A supports dual streaming in HD quality with the firrst stream recording in 1080p and the second stream for Live View in 720p. Additionally, the SP5582A can reach up to 25 meters in an environment with little light because of the built-in IR LEDs. The vandalism-proof and IP66 housing provide trustworthy performance in a demanding environment. HD cameras are ideal voor securing areas where accurate identification is needed, such as vehicle's license plate or facial recognition for forensic purposes. These camera's are also suitable for a broad covering area while maintaining clear image quality.

Specifications:

  • Progressive Scan CMOS Sensor
  • Quad Streams + Region of Interest (ROI)
  • Dual Streams, HD1080p + D1 real-time
  • H.264 and MJPEG compression
  • Wide Dynamic Range (WDR)
  • Motion Detection
  • Privacy Masks
  • Sabotage Detection
  • Smart Picture Quality / 3D Noise Reduction
  • Portrait View Mode (Image rotation by 90°)
  • Network Failure Detection
  • Dag/Nacht (removable IR-cut filter)
  • microSD/SDHC Support*
  • Weatherproof (IP66 International)
  • Vandal Proof Dome Cover
  • BNC Analog Output
  • PoE (802.3af)
  • ONVIF Support
ModelSP5582A
Video Sensor 1/2.7" Progressive Scan CMOS
Video Lens 3~9mm F/1.4 varifocal
Shutter Speed 1~1/10000 Sec.
Video Resolution HD1080p/HD720p/SXGA/D1/VGA/QVGA/CIF
FOV(16:9 resolution) 103.5゚(W) ~ 34.3゚(T)
Image Compression H.264/MJPEG
Frame rate Full HD 1080p @ 15fps
HD 720p or smaller @ 30fps
LAN 10/100M
Protocol IPv4/v6, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Power Source PoE (802.3af) 12V DC
Power Consumption 5W
8W (Built-in IR Illuminator on)
Dimensions (mm) Ø151 x 130
Weight 1280g

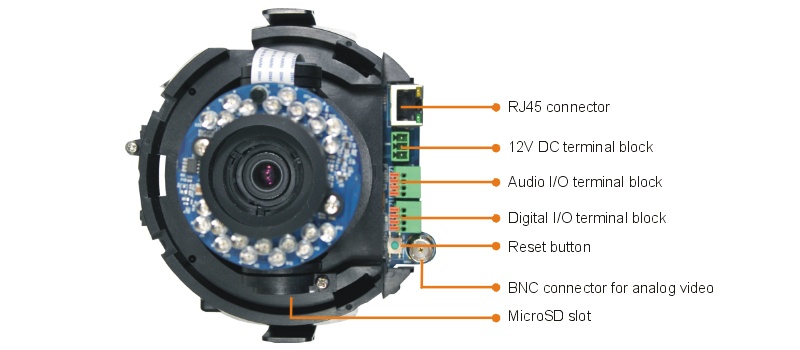

Interface

Interface

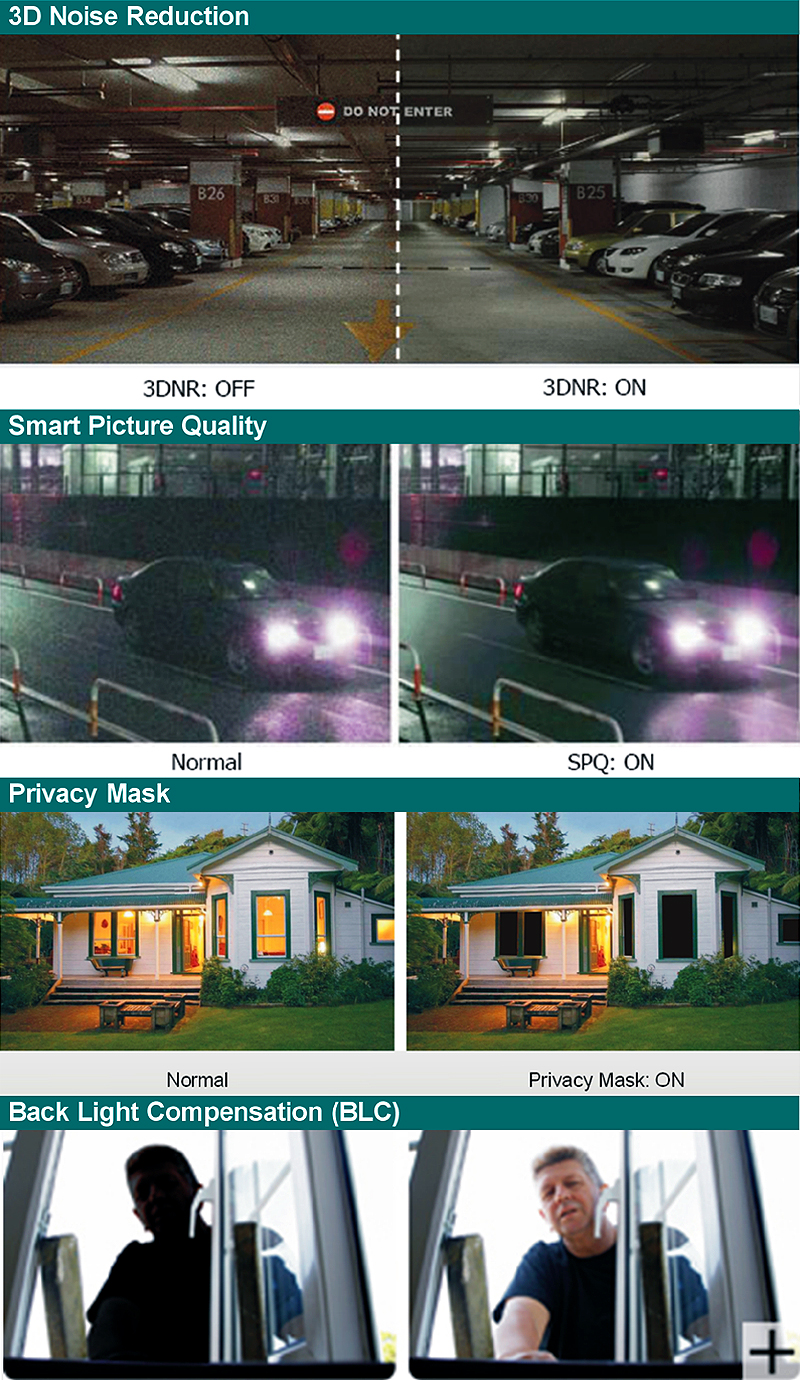

Application

Application
