Additional Information
| SKU | SP5591A |
|---|---|
| Brand | Micronet |
Details
Micronet SP5591A HD WDR bullet IP-camera offers high definition video surveillance with superior image quality and detail. It also delivers HD 1080p (1920 * 1080) resolution with excellent color display and advanced WDR technology for challenging lighting conditions. SP5591A supports dual streaming in HD quality with the first stream recording in 1080p and the second stream for Live View in 720p. Additionally, the SP5591A can reach up to 25 meters in an environment with little light because of the built-in IR LEDs. The IP66 housing and integrated sunshield provide trusted performance in a demanding environment. HD cameras are ideal for securing areas where accurate identification is necessary, such as a vehicle's license plate or facial recognition for forensic purposes. These cameras are also suitable for a broad covering area while maintining clear image quality.
Specifications:
- Progressive Scan CMOS Sensor
- Quad Streams + Region of Interest (ROI)
- Dual Streams, HD1080p + D1 real-time
- H.264 and MJPEG compression
- Wide Dynamic Range (WDR)
- Movement Detection
- Privacy Masks
- Sabotage Detection
- Smart Picture Quality / 3D Noise Reduction
- Portrait View Mode (Image rotation by 90°)
- Network Failure Detection
- Day/Night (removable IR-cut filter)
- microSD/SDHC Support*
- Weatherproof (IP66 International)
- Sunshield
- BNC Analog Output
- PoE (802.3af)
- ONVIF Support
| Model | SP5591A |
|---|---|
| Video Sensor | 1/2.7" Progressive Scan CMOS |
| Video Lens | f=3.3~12mm, F=1.4, varifocal |
| Shutter Speed | 1~1/10000 Sec. |
| Video Resolution | HD1080p/HD720p/SXGA/D1/VGA/QVGA/CIF |
| FOV(16:9 resolution) | 103.5ﾟ(W) ~ 34.3ﾟ(T)(Board Lens 78ﾟ) |
| LAN | 10/100Mbps, RJ45 |
| Video Compression | H.264/MJPEG |
| Protocol | IPv4/v6, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF |
| Wheatherproof Standard | IP66 |
| Power Source | PoE (802.3af) 12V DC |
| Power Consumption | 5W 8W (Built-in IR Illuminator on) |
| Dimensions (mm) | 195 x 90 x 90 |
| Certifications | CE, FCC, RoHS |
| Weight | 440g |
| Weight | 1300g |

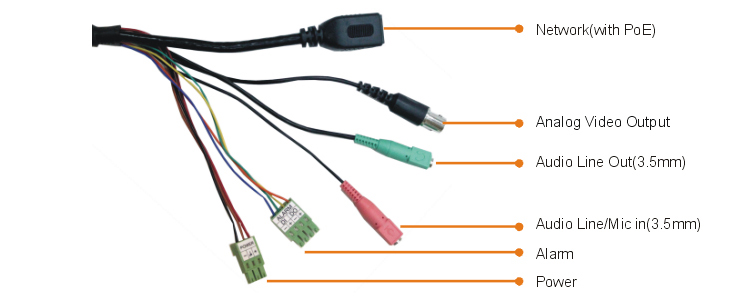

Interface

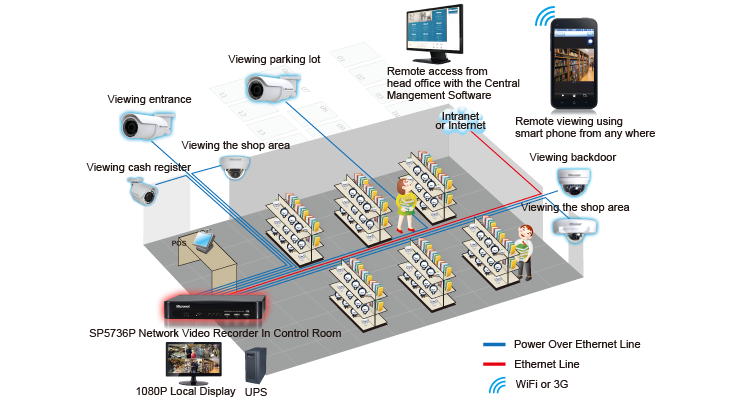

Application
