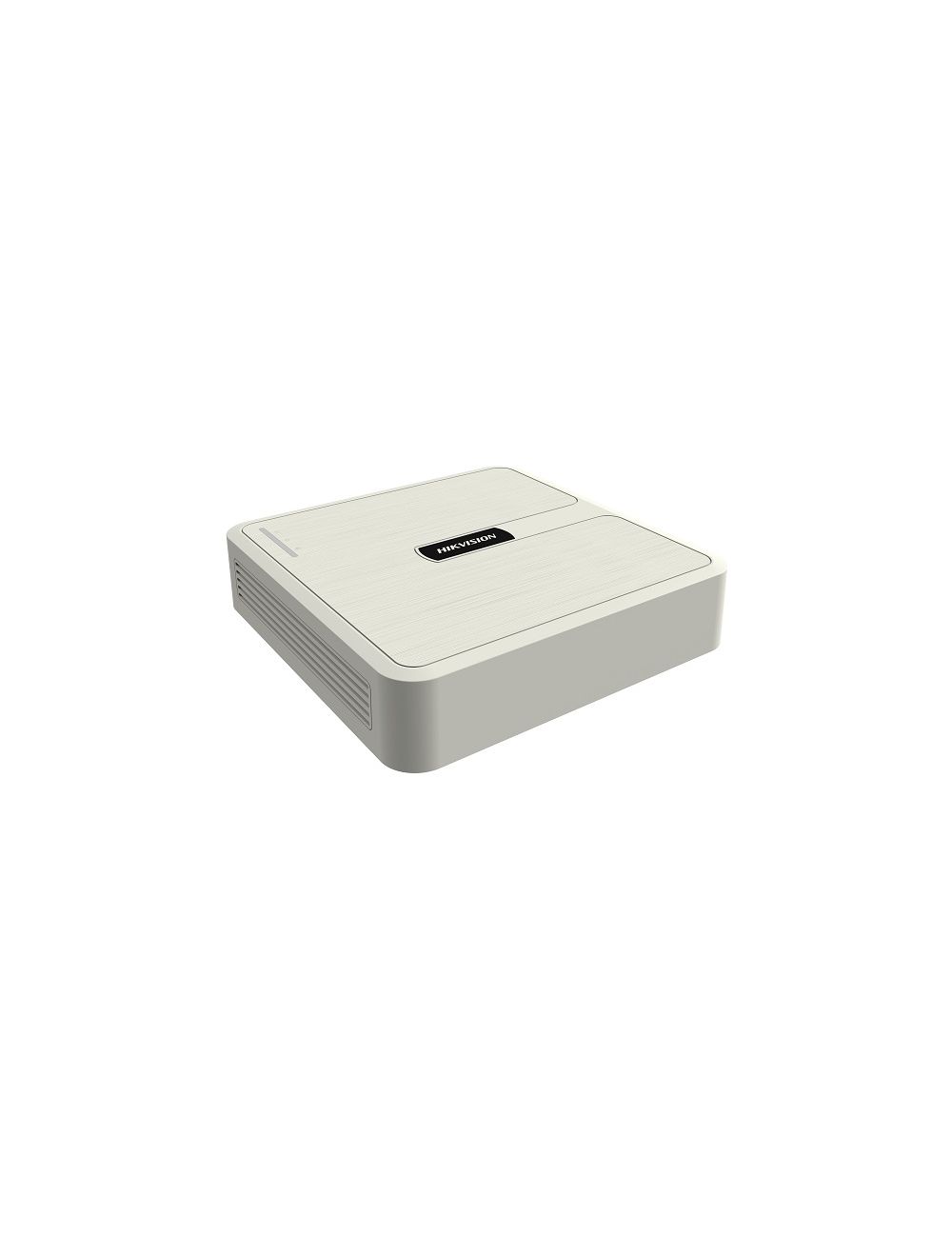

Hikvision HWN-2104H HiWatch Network Video Recorder
HiWatch series: Network Video Recorder
SKU
HWN-2104H(C)
- H.265+/H.265/H.264+/H.264 video compression
- Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 4-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous output
Lees meer over / read more about Hikvision HiWatch series
| SKU | HWN-2104H(C) |
|---|---|
| Merk | Hikvision |
| EANcode | 6941264092247 |
| Model | HWN-2104H | HWN-2108H |
| Video and audio | ||
| IP Video Input | 4-ch | 8-ch |
| Up to 6 MP resolution | ||
| Incoming bandwith | 40 Mbps | 60 Mbps |
| Outgoing bandwith | 60 Mbps | |
| HDMI Output | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60H | |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output | |
| Decoding | ||
| Decoding format | H.265+/H.265/ H.264+/H.264 | |
| Recording resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCI | |
| Synchronous playback | 4-ch | 8-ch |
| Capability | 4-ch @ 1080P (25fps) / 1-ch @ 6MP (25fps) | |
| Stream type | Video, Video & Audio | |
| Auxiliarry interface | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 6TB capacity for each disk | |
| Alarm in/out | N/A | |
| USB interface | Rear panel: 2x USB 2.0 | |
| Network | ||
| Network protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP | |
| Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface | |
| Remote connection | 16 | |
| General | ||
| Power supply | 12 VDC | |
| Consumption (without HDD) | ≤ 10 W | |
| Working temperature | -10 to +55º C | |
| Working humidity | 10 % to 90 % | |
| Dimension | 200 × 200 × 48 mm | |
| Weight (without HDD) | ≤ 1 kg | |
Of bekijk / or view (pdf) datasheet HWN-2100H series NVR
Bekijk hier de handleiding van de / View manual of network video recorder. Beide zijn ook te vinden onder / Both can also be found under Support/Downloads/Hikvision.
