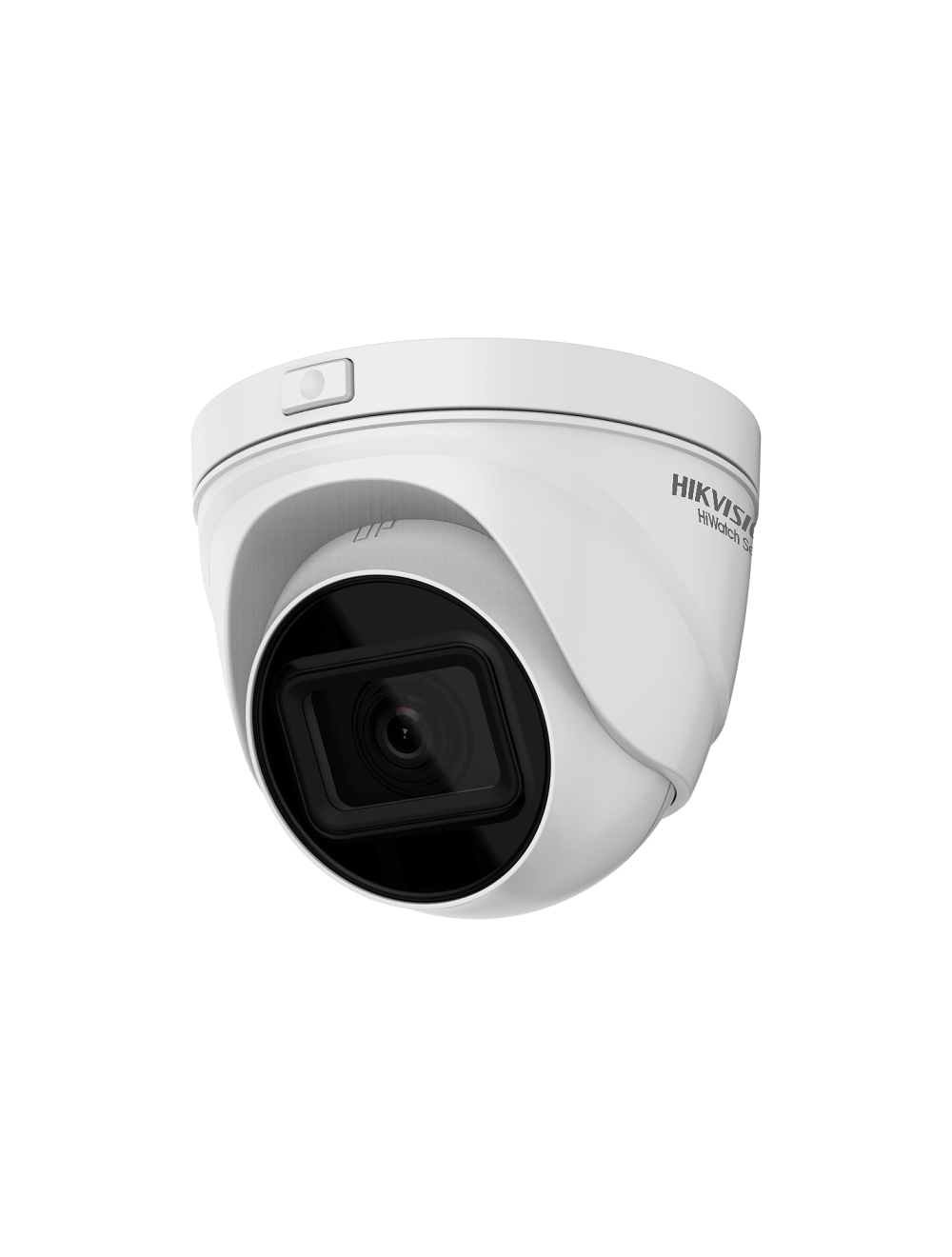

Hikvision HWI-T641H-Z HiWatch Motorized Network Turret camera

HiWatch Series: 4.0 Megapixel IR Motorized Network Turret camera
SKU
HWI-T641H-Z
  • 1/3" progressive scan CMOS
  • 2560 × 1440@20fps
  • 2.8 mm to 12 mm motorized varifocal lens
  • H.265+, H.265, H.264+, H.264
  • Dual stream
  • 120 dB WDR (Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • Up to 30 m IR range
  • PoE (Power over Ethernet)
  • Power supply not included
  • IP67

Lees meer over / read more about Hikvision HiWatch series

Meer informatie
SKU HWI-T641H-Z
Merk Hikvision
EANcode 6954273671976
HWI-T641H-Z
Camera
Image sensor 1/3"CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.02Lux @ (F1.6, AGC ON)
Day&Night IR cut filter
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Angle adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Focal lenght 2.8mm to 12 mm
Aperture F1.6
Focus Auto
FOV horizontal FOV 92.8° to 29°, vertical FOV 50.2° to 16.4°, diagonal FOV 109° to 32.3°
IR
IR Range Up to 30m
Wavelength 850nm
Compression standard
Video compression H.265+/H.265/H.264+/H.264
H.264 type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.264 type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of interest 1 fixed region for main stream and sub-stream
Max. Resolution 4MP (2560 x 1440)
Main Stream
Max. Frame Rate
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled, day, night
Network
Network Storage Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API ONVIF, ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect
Web browser IE, Chrome, Firefox
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
General
Operating conditions -30 °C to 60 °C, humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 1 A, Max: 11 W
PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12.5 W
Ingress Protection IP67
Material Camera body: metal, bottom base: plastic
Dimensions Camera: Ø 129.4 mm × 116.4 mm
With package: 150 mm × 150 mm × 141 mm
Weight Approx. 435 g



U kunt deze gegevens ook terugvinden in de datasheet.

Bekijk hier de handleiding van de netwerk camera.
Beide zijn ook te vinden onder Support/Downloads/Hikvision.
